Features: |
|
• Quartz-controlled, premium HiFi turntable |
• Super high torque, direct drive DC motor with ultra-precise rotation speed |
• Quick start-up and drift-off rotation speed less than +/-0.03% |

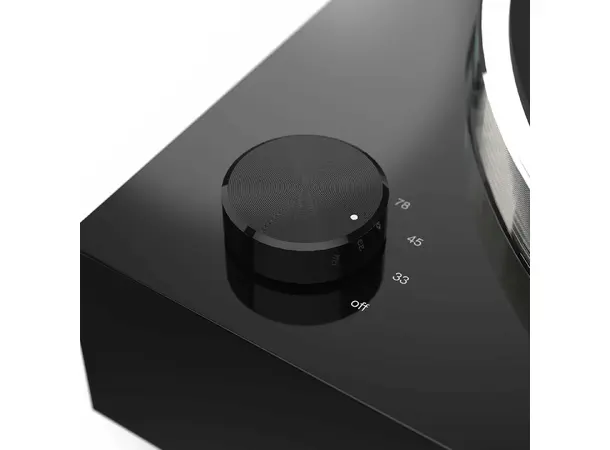

• Full manual operation with motor control-switch to select three different speeds (33, 45 and 78 RPM) |
• Precision machined, extra heavy aluminium die-cast platter |
• Deadening rubber covering rear platter surface & special 5 mm rubber mat |
• Sunk-in platter cavity construction |
• Static-balanced S-shaped tonearm with VTA adjustment |
• Adjustable anti-skating wheel for optimal pick-up tracking |

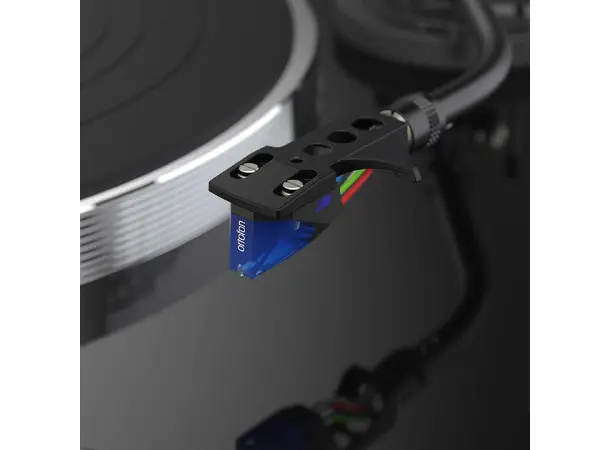

• Pre-installed Ortofon 2M Blue cartridge for excellent dynamics and sound resolution |
• Universal headshell connector (SME) provides added flexibility |
• Counterweight supplied supports a wide variety of cartridges |
• Premium, high-resolution audio phono outputs (with separate grounding connection) |
• Gold-plated, corrosion-resistant audio connections (detachable power and RCA cables) |
• Built-in switching power with ultra-low noise isolation design |
• Rigid construction, with extra-heavy, solid MDF wooden plinth |
• Height-adjustable, shock-resistant insulator feet for effective decoupling |
• Timeless design with high-gloss, black piano finish |
|
|
|
|
Turntable Section: |
|
• Type of turntable: Direct drive, fully manual |
• Drive: Quartz driven upper-torque direct drive with precision rotation |
• Motor: DC Motor, 16-Pole, 3-Phase, brushless |
• Rotation speeds: 33 1/3, 45 & 78 RPM |
• Starting Torque: More than 4500 g/cm |
• Start-up time / rpm change: Less than 0.3 sec. |
• Wow and Flutter: Less than 0.1% WRMS (JIS WTD) |
• S/N Ratio: More than 60dB (DIN-B) |
• Breaking System: Electronic brake |
|
|
Turntable Platter: |
|
• Turntable Platter: Aluminium die-cast |
• 305 mm diameter |
• Weight About 2.1 kg |
|
|
Tonearm Section: |
|
• Type: Static balanced S-Shape |
• Effective Length: 230 mm |
• Overhang: 15 mm |
• Tracking Error Angle: Less than 3 degrees |
• VTA Adjustment Range: 0-6 mm |
• Applicable Cartridge Weight: 17 – 25 g (incl. Headshell) |
• Anti-Skating Range: 0-3 g |
• Terminals: 1x PHONO Out (gold-plated), 1x GND Earth Terminal |
|
|
Cartridge: |
|
• Type of cartridge: Ortofon 2M Blue |
• Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV |
• Channel balance at 1 kHz: 1.5 dB |
• Channel separation at 1 kHz: 25 dB |
• Channel separation at 15 kHz: 15 dB |
• Frequency response: 20-20.000 Hz + 2 / - 1 dB |
• Tracking ability at 315Hz at recommended tracking force: 80 µm |
• Compliance, dynamic, lateral: 20 µm/mN |
• Stylus type: Elliptical |
• Stylus tip radius: r/R 8/18 µm |
• Tracking force range: 1.6-2.0 g (16-20 mN) |
• Tracking force, recommended: 1.8 g (18 mN) |
• Tracking angle: 20° |
• Internal impedance, DC resistance: 1.3 kOhm |
• Internal inductance: 700 mH |
• Recommended load resistance: 47 kOhm |
• Recommended load capacitance: 150-300 pF |
• Cartridge colour, body/stylus: Black/Blue |
• Cartridge weight: 7.2 g |
|
|
General: |
|
• Power Supply: AC IN 100~240V, 50/60 HZ |
• Power consumption: 3W |
• Dimensions: 460(W) x 367.3(D) x 172.6(H) mm |
• Weight: 10.35 kg |
|
|
Included accessories: |
|
Dust cover + 2x hinge, rubber mat, power supply cable, RCA cable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue (pre-installed), turntable platter, operation manual & counterweight |
