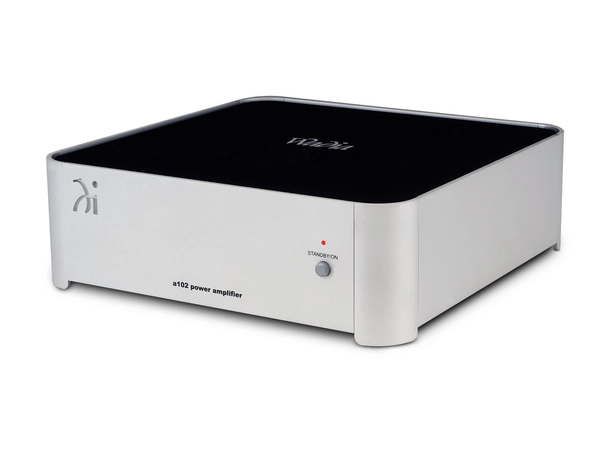

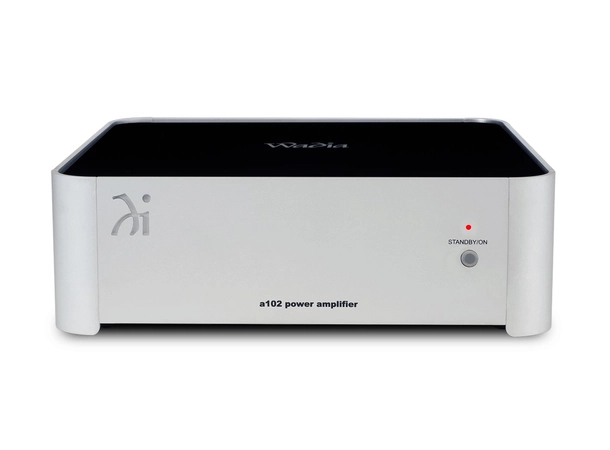

Wadia a102

Effektforsterker 2 kanaler - Sølv

Wadia a102 er en elegant 2x50 watts stereo effektforsterker, et opplagt valg sammen med di122 forforsterker. Håndlaget av Wadia i USA.

Varenr: 129718

19 995,-

3+ på nettlager

Beskrivelse

Stereo effektforsterker som design- og ytelsesmessig er matchet til Wadias 100-serie komponenter. Effektforsterkeren har både balanserte (XLR) og singel-ended (RCA) innganger for tilkobling til forforsterker.

Designet er elegant og påkostet med massivt aluminiumskabinett og topplate i sort glass.

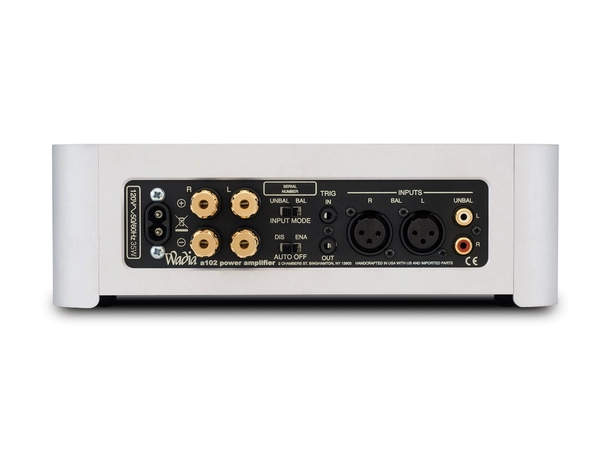

Innganger: XLR (balansert) og RCA (ubalansert)
Utgangseffekt: 2x50 Watt (8 ohm), 2x80 Watt (4 ohm)
Dimensjoner (H,B,D): 8 x 25,4 x 27,6 cm
Vekt: 3,9 kg

Teknisk info

POWER OUTPUT	50 watts into 8 ohm loads 80 watts into 4 ohm loads
OUTPUT LOAD IMPEDANCE	8 ohms or 4 ohms
RATED POWER BAND	20Hz to 20kHz
TOTAL HARMONIC DISTORTION	0.2% maximum harmonic distortion at any level from 250 milliwatts to one-half of rated power output, 20Hz to 20kHz; 0.5% maximum harmonic distortion at any level from one-half to full rated power output, 20Hz to 20kHz
DYNAMIC HEADROOM	1dB 8 ohm load 1.3dB 4 ohm load
FREQUENCY RESPONSE	+0, -0.5dB from 20Hz to 20kHz +0, -3.0dB from 10Hz to 50kHz
INPUT SENSITIVITY (for rated output)	1.4V Balanced 0.7V Unbalanced
A-WEIGHTED SIGNAL TO NOISE RATIO	96dB (113dB below rated output) Balanced 93dB (110dB below rated output) Unbalanced
INTERMODULATION DISTORTION	0.1% maximum if instantaneous peak power output does not exceed the rated output for any combination of frequencies from 20Hz to 20kHz
WIDE BAND DAMPING FACTOR	Greater than 200, 8 ohm load Greater than 100, 4 ohm load
INPUT IMPEDANCE	15K ohms Balanced and Unbalanced
VOLTAGE GAIN	29dB
TRIGGER INPUT	5-15VDC, <1mA
TRIGGER OUTPUT	12VDC, 50mA maximum, delayed 0.2 seconds
OVERALL DIMENSIONS	Width 25.4 cm Height 8 cm including feet Depth 35.6 cm including cables
WEIGHT	3.9 kg
DOWNLOADS	Datasheet User manual
