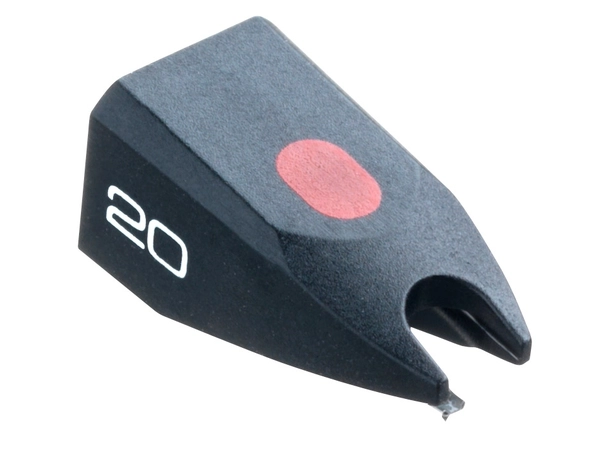

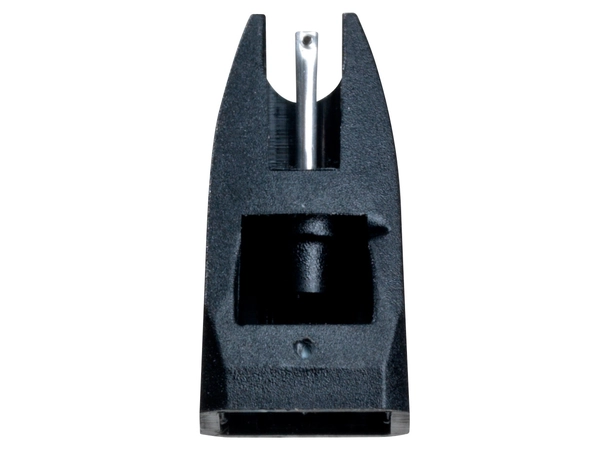

Ortofon Stylus 20 stift

• Frequency range 20-27.000 Hz
• Frequency response 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) 85 µm
• Compliance, dynamic, lateral 25 µm/mN
• Stylus type Nude Elliptical
• Stylus tip radius r/R 8/18 µm
• Equivalent stylus tip mass 0.4 mg
• Tracking force range 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended 1.5 g (15 mN)
• Tracking angle 20°
• Stylus colour Black
• Recommended for following cartridges Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H

*) Typical value
