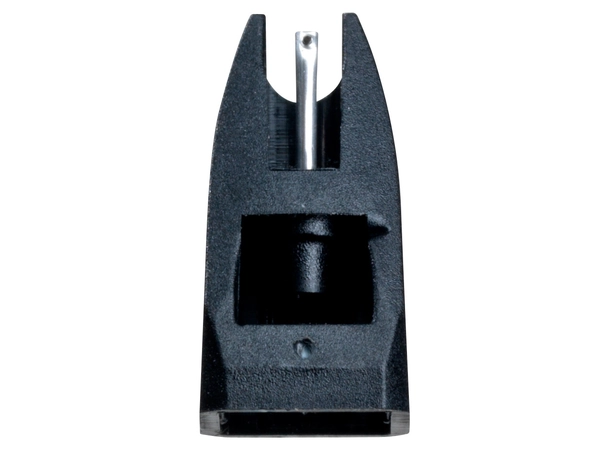

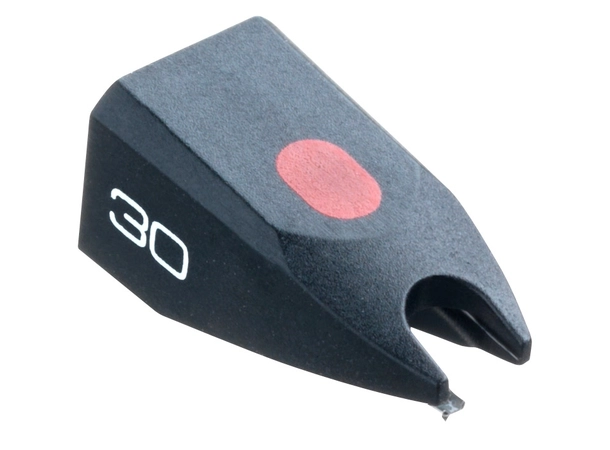

Ortofon Stylus 30 stift

• Frequency range 20-29.000 Hz
• Frequency response 20-20.000 Hz + 2 / - 3 dB
• Tracking ability at 315Hz at recommended tracking force *) 90 µm
• Compliance, dynamic, lateral 25 µm/mN
• Stylus type Nude Fine Line
• Stylus tip radius r/R 8/40µm
• Equivalent stylus tip mass 0.3 mg
• Tracking force range 1.25-1.75 g (12.5-17.5 mN)
• Tracking force, recommended 1.5 g (15 mN)
• Tracking angle 20°
• Stylus colour Black
• Recommended for following cartridges Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H

*) Typical value
