Technical data

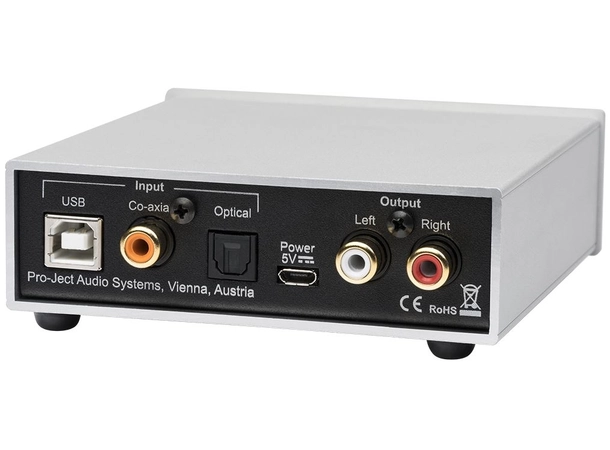

3 digital inputs 1x coax (S/PDIF), 1x optical (TOSlink®), USB B
D/A-converter 2x ESS9038Q2M 32-bit PCM 768kHz / DSD512
Headphone amplifier chip ESS9602
Sampling rates 32/44,1/48/88,2/96/176,2/192/352,8/384/768 kHz
DSD support DSD64, DSD128, DSD256 and DSD512
MQA support full MQA unfolding by hardware
Filter settings 7 different selectable on front
Frequency response 20Hz - 20kHz
Analogue out 6.3mm Headphone Out (front), 1x Variable Out (RCA)
Output voltage 2,05 Veff
Headphone output power 68mW (32Ohms)
THD 0,0003%
Dynamic Range 124dBA
Powerconsumption 5V, micro USB
Dimensions W x H x D 103 x 36 x 103 mm
Weight 600g without power supply
