System Format Active sub-woofer amplifier
Low Frequency Limit 25Hz

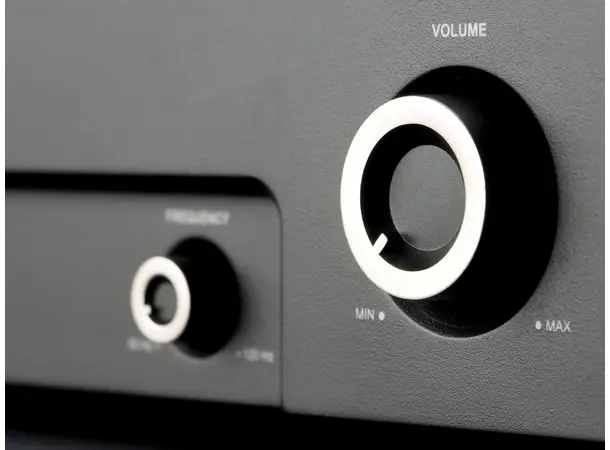

Upper Frequency Limit Variable 40 – 120 Hz @ 24dB/Octave
Amplifier Power Output 250W @ < 1% THD+N
Drive Unit Parameters 4 - 8 Ohm Nominal Impedance
Amplifier Classification Class D amplifier with Switch mode power supply (SMPSU)
Cabinet Switch For use when using the dedicated back box
EQ Switch Music/ Movie/ Impact
Phase Control 0 & 180 degrees
Auto Sensing Line Level > 3.5mV
Input Level Requirements Standby after approximately 15 minutes if no signal sensed
Input Impedance > 20K Ohms
Mains Input Voltage
- AC 110 - 120 V ~ 50/60Hz
- AC 220 - 240 V ~ 50/60Hz
- (Factory Region Preset)
Dimensions (H x W x D) 43.7 x 432 x 263mm 1 3/4 x 17 x 10 3/8 Inch

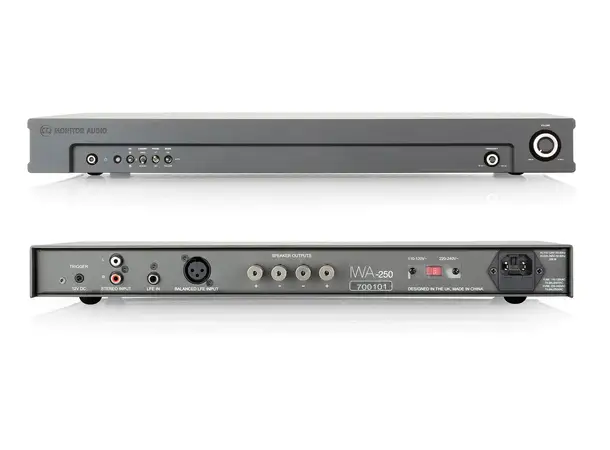

Connections LFE in (Stereo RCA and Balanced),

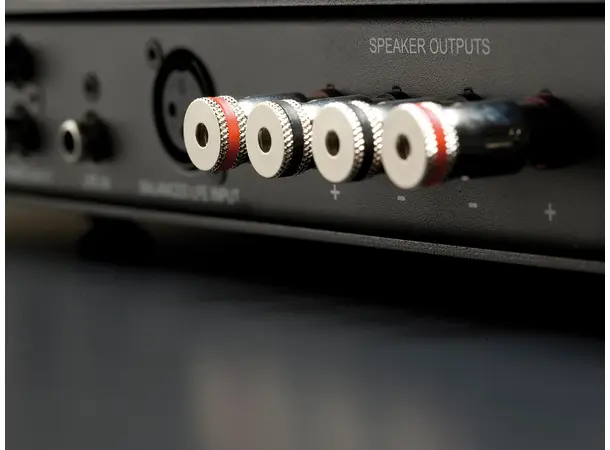

12v Trigger in (3.5mm mono mini-jack), left and right speaker output 12v Trigger Input 5 - 12v via 3.5mm mono mini-jack socket
Power Consumption
- Standby: < 0.5W (ErP approved)
- Typical Idle: < 10W
- Max Rated: 200W
Weight (unpacked 4Kg
