Channels: 4
Output Power @ 4 Ohms/8 Ohms: 4 x 125W SE
Output Power @ 70/100V: 2 x 250 BTL
Poweshare (up to): 2 x 250 W
Power Consumption: 150 W
Thermal Output: 512 BTU
Polarity (Default): Non-inverting
Dimensions: 44 x 220 x 325 mm (13/4 x 811/16 x 115/8")
Output Voltage: 70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded)
Signal to Noise Ratio: >106dB (A-weighted, 20 Hz – 20 kHz, 8 Ohm load)
THD+N (typical): <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
Frequency Response: +0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)
Protection Circuits?: Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
Power Supply?: Switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating? Voltage/Frequency: Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
Standby Consumption: <0.5 W

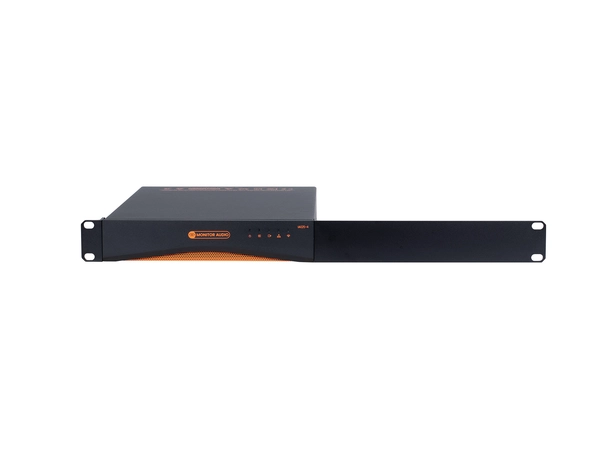

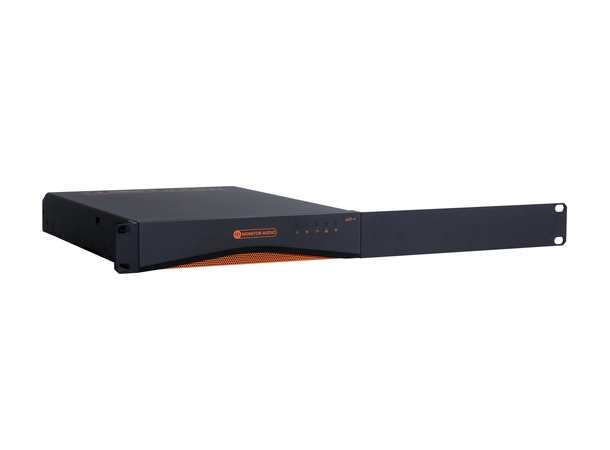

Accessories: Rack Mount Kit, Wall/desktop mount kit (sold seperatley)
Power Ratings: 1% THD @ 120Vac and 230Vac
Cabinet Finish: Black Anodised
* SE - Single Ended
** BTL - Bridge Tied Load
*** BTU - British Thermal Unit
