Channels: 4
Output Power @ 2 Ohm: 4 x 750W SE
Output Power @ 4 Ohm: 4 x 750W SE, 2 x 1500W BTL
Output Power @ 8 Ohm: 2 x 400W SE, 2 x 1500W BTL
Output Power @ 70V: 1 x 1200W BTL
Output Power @ 100V: 2 x 1500W BTL
Maximum Total Output Power, all channels driven: 3000 W
Power Consumption: 700 W
Thermal Output: 2400 BTU
Polarity (Default): Non-inverting
Dimensions: 88 x 440 x 329 mm (36/16 x 175/16 x 1215/16”)
Output Voltage: 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded)
Signal to Noise Ratio: >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load)
THD+N (typical): <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power)
Frequency Response: +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power
Protection Circuits: Short circuit -, DC, Undervoltage -, Temperature – and Overload protection
Power Supply: Switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating Voltage/Frequency: Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz
Standby Consumption: <0.5W

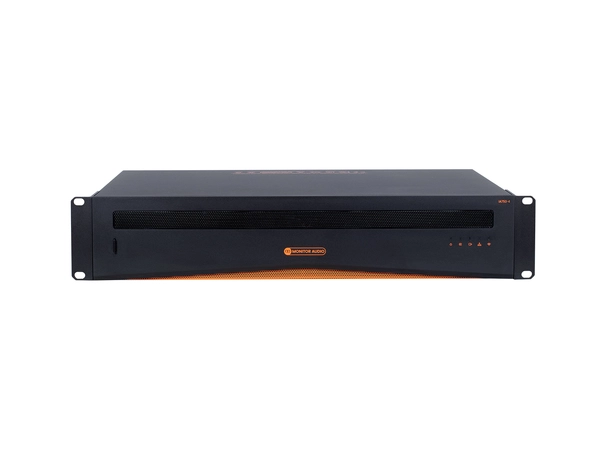

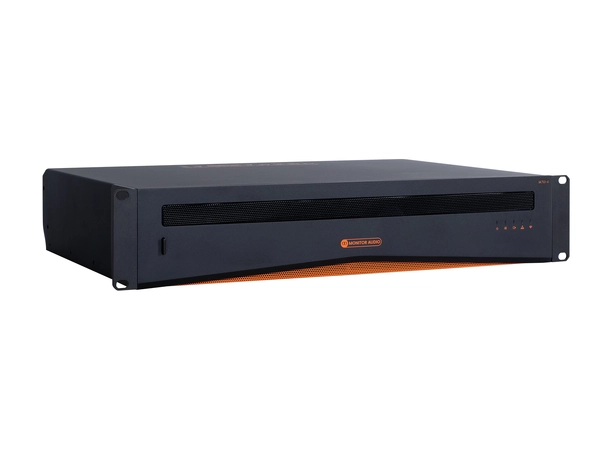

Accessories: Rack mount kit (pre-installed)
Power Ratings: 1% THD @ 120Vac and 230Vac
Cabinet Finish: Black Anodised
