| Multichannel Surround |
|
| DTS HD Master / DTS:X / DTS:X Pro |
Yes / Yes / Yes |
| DTS Neo:X / DTS Neural:X |
No / Yes (15ch) |
| DTS Virtual:X |
Yes |
| IMAX Enhanced |
Yes |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music |
Yes / Yes / Yes / Yes |
| Dolby ProLogic Ilz / Dolby Surround |
No / Yes |
| Auro 3D |
Yes |
| 360 Reality Audio / MPEG H |
Yes / Yes |
| Multichannel Stereo |
Yes |
| Max Number of Processing (Preamp) Channels |
15.4
|
| |
|
| Sound Enhancements |
|
| Copper Plated Chassis |
Yes |
| Power Transformer: Toroidal / EI |
Yes / No |
| Current Feedback Topology |
Yes |
| Hyper Dynamic Amplifier Modules (HDAM) |
Yes |
| Pure Direct |
Yes |
| Gold plated RCA terminals |
Yes |
| Clock Jitter Reducer |
Yes |
| Audyssey |
MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
| Audyssey LFC |
Yes |
| Dirac Live upgradability |
Yes |
| Compressed Audio Enhancer: MDAX2 |
Yes |
| |
|
| Network |
|
| HEOS Multi-room and Streaming |
Yes |
| Bluetooth Re-transmit for Bluetooth headphones |
Yes |
| Alexa / Google Voice Assistant / Apple HomePod |
Yes / Yes / Yes |
| Network Audio Sharing |
Yes |
| Lossy formats: MP3 / WMA / AAC |
Yes / Yes / Yes |
| Lossless formats: FLAC / ALAC / WAV |
Yes / Yes / Yes |
| Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
Yes / Yes / Yes |
| DSD Audio Streaming |
Yes (2.8/5.6MHz) |
| FLAC HD 192/24 |
Yes |
| WAV 192/24 |
Yes |
| ALAC 192/24 |
Yes |
| Gapless Playback |
Yes (FLAC, WAV ,ALAC ,DSD) |
| AirPlay Audio Streaming |
Yes (AirPlay2) |
| Internet radio |
Yes (TuneIn) |
| Spotify* |
Yes (connect) |
| Pandora |
Yes |
| SiriusXM |
Yes |
| Other Streaming Services * |
Amazon Music HD/Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix |
| Roon Tested |
Yes |
| Compatible with Remote APP for Smart Phones |
Marantz AVR Remote |
| Compatible with Remote APP for Tablets |
Android / iOS / Amazon Kindle |
| Ethernet Ports |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| |
|
| HDMI |
|
| HDMI Inputs: Back / Front |
7 / No |
| HDCP2.3 support |
Yes |
| HDMI Outputs: Main / Zone |
2 / 1 |
| HDMI to HDMI Scaling |
1080P/4K to 8K |
| GUI Overlay on HDMI |
Yes |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB |
Yes / Yes |
| 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out |
7 / 2 (up to 40Gbps) |
| HDMI 2.0: 3D / 4K / CEC / ARC |
Yes / Yes / Yes / Yes |
| Enhanced ARC |
Yes |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR |
Yes / Yes / Yes / Yes / Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming |
Yes |
| Variable Refresh Rate / Quick Frame Transport |
Yes / Yes |
| 3D Signal Pass-Through |
Yes |
| 8K signal pass-through / scaling / GUI overlay |
Yes / Yes / Yes |
| 4K Signal Pass-Through / Scaling / GUI Overlay |
Yes / Yes / Yes |
| HDMI pass-though in standby mode |
Yes |
| Picture Adjust / Noise Reduction |
No / No |
| CEC |
Yes |
| DSD Audio Capability |
Yes |
| Audio Return Channel |
Yes |
| Auto LipSync |
Yes |
| |
|
| Multi-Room / CI |
|
| HEOS Multi-Room Integrated |
Yes |
| HEOS Link Compatibility: IR/ IP |
Yes / Yes |
| Multi-Room Zones |
3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog |
Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout |
No / Yes |
| Zone HDMI Output from HDMI Source |
Yes |
| IP Control / RS232 Control / Web Control / App Control |
Yes / Yes / Yes / Yes |
| IR Flasher In |
Yes |
| Marantz Remote Bus |
Yes |
| DC Trigger Output |
2 |
| HDMI Diagnostics |
Yes |
| |
|
| Others |
|
| Auto Speaker Setup by Microphone |
Audyssey MultEQ XT32 |
| |
Dirac Live (upgrade) |
| Front Display |
2 line FLD + port hole OLED |
| Graphic User Interface - GUI |
Modern HD GUI |
| GUI Languages |
3 |
| Setup Assistent |
Yes |
| Smart Select |
Yes |
| Firmware Update by Network / USB |
Yes / Yes |
| Variable Cross Over |
Yes |
| Optimized Bass Redirection |
Yes |
| Bass Sync |
Yes |
| Auto Power off |
Yes |
| Sleep Timer |
Yes |
| |
|

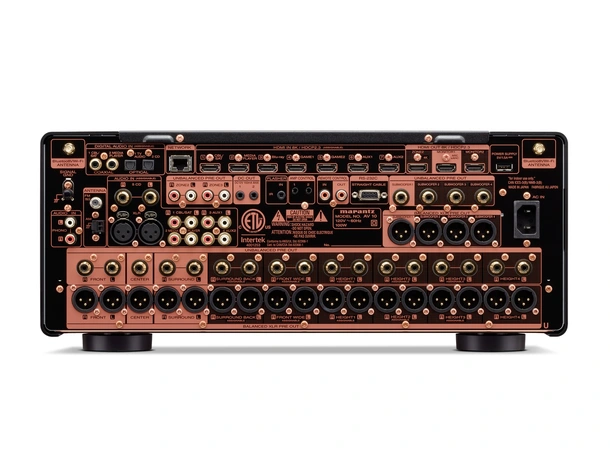

| Inputs/Outputs |
|
| Composite In / Out |
No / No |
| Component In / Out |
No / No |
| HDMI In / Out |
7 / 3
|
| Multi-Room Video Out: Video / HDMI |
No / Yes |
| Analogue In / Out |
5 (1x XLR) / No |
| Phono (MM) In |
Yes |
| Digital In: Optical / Coaxial |
2 / 2 |
| Multi-Room Out: analog / digital |
2 / No |
| Multichannel Pre Out |
Yes (17.4 RCA & 17.4 XLR) |
| Subwoofer Out |
4 (independent) |
| Speaker A / B |
assignable pre out |
| Bi-amp drive |
assignable pre out |
| Multi-Room Speaker Terminal |
pre out |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB |
No / No / No / No / Yes |
| USB Audio / Made for iPod / Made for iPhone |
Yes / No / No |
| AM/FM Tuner |
Yes |
| |
|
| General |
|
| Metal Front Panel |
Yes |
| System Remote Control |
RC047SR |
| Pre-Programmed / Learnable / LCD Display |
Yes / Yes / Yes |
| Power Consumption in W |
100 |
| Standby Consumption in W |
0.2 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
| Maximum Dimensions (H x B x D) in cm |
25,2 x 44,2 x 50,3 cm |
| Weight |
16.8kg |
| What's in the box |
Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
